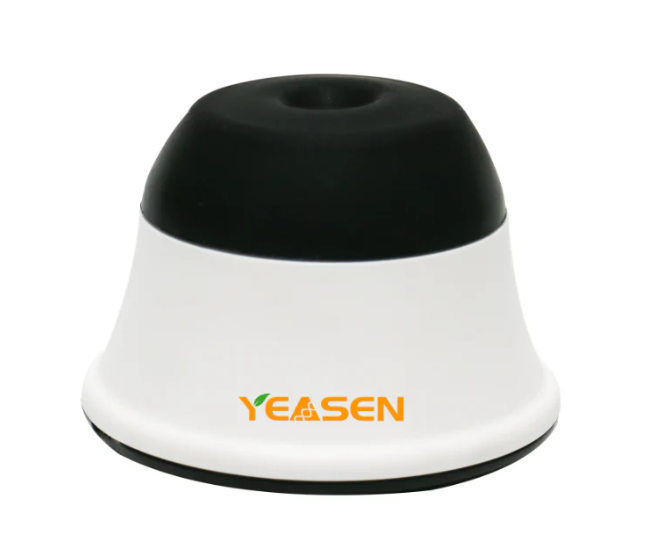

ES-VM20 Touch Vortex Mixer
제품 번호
80171ES
제품 설명
The ES-VM20 Touch Vortex Mixer is equipped with a brushless DC motor, achieving rapid mixing in just 5 seconds at a speed of 4000 rpm, with a maximum mixing capacity of up to 50 mL. This compact mixer features a large silicone contact surface, making it compatible with a wide variety of containers. Designed for easy single-handed operation, the vortex mixer activates by simply applying slight pressure to the center of the silicone cup. It requires minimal activation force, making it ideal for repetitive and continuous mixing tasks.
Components No. | Name | 80171ES01 |
80171 | ES-VM20 Touch Vortex Mixer | unit |
Item | Parameter |
Control Mode | Touch Control |
Voltage | 100-240V, 50/60Hz |
Motor Power | 5W |
Materials | ABS Plastic + Silicone + Aluminum Alloy |
Mixing Speed | 4000 rpm (Fixed) |
Mixing Capacity | Up to 50 mL |
Motor Type | Brushless DC Motor |
Agitation Mode | Orbital Motion |
Orbit Diameter | 20 mm |
Waterproof Rating | IP42 |
Ambient Temperature | 41°F - 104°F / 5℃ - 40℃ |
Relative Humidity | ≤ 80% |
Weight | 0.83 lbs / 380 g |
Dimensions | 3.9" x 3.9" x 2.8" / 10 x 10 x 7 cm |
This product should be stored at room temperature.
1. Place the instrument on a stable, level workbench and connect it to a power source.
2. Position the centrifuge tube or test tube in the center of the silicone cup. Gently touch and press down to activate the mixing operation.
1. This product is for research use only.
2. Do not unplug the power connector or operate the power button with wet hands.
3. Do not unplug the power cord while the instrument is powered on.
4. Maintenance and cleaning of the instrument while it is connected to power are strictly prohibited.
5. Installing the instrument on uneven or unstable workbenches is strictly prohibited.
No. | Item Name | Quantity |
1 | Main Unit | 1 |
2 | Power Cord | 1 |
3 | User Manual | 1 |
4 | Certificate of Conformity | 1 |
