[GenTarget] near-infrared RFP

Cat-No.



Gentarget는 유전자 편집 및 생명과학 연구를 위한 고급 솔루션과 서비스를 제공하는 글로벌 생명과학 기업입니다.





Why use niRFP?

The near-infrared Red fluorescent protein (niRFP) was characterized with high brightness and photostability, with the far-red part of the spectrum, which makes it an excellent fluorescent marker. It can be used for whole-body images with better contrast and brighter images than other fluorescent proteins. Beware you may need to supplement your cells with biliverdin (biliverdin IXα) for maximal brightness. And a full spectrum camera is required  to visualize niRFP signal.

niRFP Expression Lentivirus:

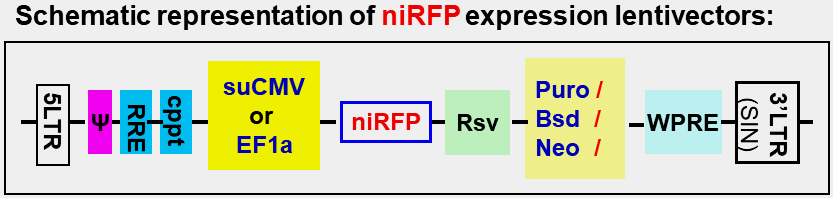

GenTarget constructs a set of niRFP expression lentivirus under either enhanced CMV promoter, or the enhanced EF1a promoter, containing different antibiotic selection (Puromycin, Blasticidin, or Neomycin). The suCMV promoter demonstrates the highest expression level in the majority of cell types. The engineered EF1a promoter is non-tissue specific, highly expressed in all cell types, and less likely to be silenced after long-term culture. The core lentivector structure was showed in the scheme below:

niRFP expression lentivector map

see products in Product Manual (.pdf file).


near-infrared RFP



Product nameCat. No.
iRFP670 (CMV, Bsd) lentivirusLVP1754
iRFP670 (CMV, Neo) lentivirusLVP1755
iRFP670 (CMV, Puro) lentivirusLVP1753
iRFP670 (EF1a, Bsd) lentivirusLVP1757
iRFP670 (EF1a, Neo) lentivirusLVP1758
iRFP670 (EF1a, Puro) lentivirusLVP1756
niRFP (CMV, Bsd) lentivirus in PBSLVP559-PBS
niRFP (CMV, Neo) lentivirus in PBSLVP560-PBS
niRFP (CMV, Puro) lentivirus in PBSLVP558-PBS
niRFP (EF1a, Bsd) lentivirus in PBSLVP562-PBS
niRFP (EF1a, Neo) lentivirus in PBSLVP563-PBS
niRFP (EF1a, Puro) lentivirus in PBSLVP561-PBS
