[ProMab] SV2C Primary Antibody

Cat-No. 32307


ProMab은 항체, CAR-T/NK 세포, mRNA-LNP 개발을 통합적으로 제공하는 면역치료 분야의 선도적인 생명공학 기업입니다.



제품 설명


SV2C Primary Antibody




제품 번호


32307




제품 특징


Item Information
Catalog #
Size
Price
32307
1.0mg/ml
$395.0
Description

SV2C (Synaptic Vesicle Glycoprotein 2C) is a Protein Coding gene. Diseases associated with SV2C include Foodborne Botulism and Alcohol-Related Birth Defect. Among its related pathways are Toxicity of botulinum toxin type F (BoNT/F) and Uptake and actions of bacterial toxins. Gene Ontology (GO) annotations related to this gene include transporter activity and transmembrane transporter activity. An important paralog of this gene is SV2A.

Product Overview
Entrez GenelD
22987
Clone#
5G11D10
Host / Isotype
Mouse / Mouse IgG1
Species Reactivity
Human
Immunogen
Purified recombinant fragment of human SV2C (AA: extra mix) expressed in E. Coli.
Formulation
Purified antibody in PBS with 0.05% sodium azide
Storage
Store at 4°C short term. Aliquot and store at -20°C long term. Avoid freeze/thaw cycles.
Product Applications
WB (Western Blot)
1/500 - 1/2000
IHC_P(Immunohistochemistry)
1/200 - 1/1000
ICC (Immunocytochemistry)
1/200 - 1/1000
FCM (Flow Cytometry)
1/200 - 1/400
ELISA
1/10000
References
1,Nat Struct Mol Biol . 2016 Jul;23(7):656-62.
2,Trends Biochem Sci . 2014 Nov;39(11):517-26.

Product Image

Elisa

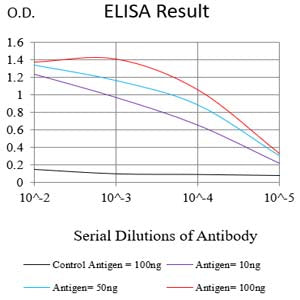

설명: Figure 1:Black line: Control Antigen (100 ng);Purple line: Antigen (10ng); Blue line: Antigen (50 ng); Red line:Antigen (100 ng)

Figure 1:Black line: Control Antigen (100 ng);Purple line: Antigen (10ng); Blue line: Antigen (50 ng); Red line:Antigen (100 ng)


Western Blot
설명: Figure 2:Western blot analysis using SV2C mAb against human SV2C (AA: extra mix) recombinant protein. (Expected MW is 22.7 kDa)
Figure 2:Western blot analysis using SV2C mAb against human SV2C (AA: extra mix) recombinant protein. (Expected MW is 22.7 kDa)


Western Blot
설명: Figure 3:Western blot analysis using SV2C mAb against HEK293-6e (1) and SV2C (AA: extra mix)-hIgGFc transfected HEK2936e (2) cell lysate.

Figure 3:Western blot analysis using SV2C mAb against HEK293-6e (1) and SV2C (AA: extra mix)-hIgGFc transfected HEK2936e (2) cell lysate.


Immunohistochemical analysis
설명: Figure 4:Immunofluorescence analysis of Hela cells using SV2C mouse mAb (green). Blue: DRAQ5 fluorescent DNA dye. Red: Actin filaments have been labeled with Alexa Fluor- 555 phalloidin. Secondary antibody from Fisher (Cat#: 35503)
Figure 4:Immunofluorescence analysis of Hela cells using SV2C mouse mAb (green). Blue: DRAQ5 fluorescent DNA dye. Red: Actin filaments have been labeled with Alexa Fluor- 555 phalloidin. Secondary antibody from Fisher (Cat#: 35503)


Immunofluorescence analysis
설명: Figure 5:Flow cytometric analysis of Raji cells using SV2C mouse mAb (green) and negative control (red).

Figure 5:Flow cytometric analysis of Raji cells using SV2C mouse mAb (green) and negative control (red).


Immunohistochemical analysis
설명: Figure 6:Immunohistochemical analysis of paraffin-embedded liver cancer tissues using SV2C mouse mAb with DAB staining.

Figure 6:Immunohistochemical analysis of paraffin-embedded liver cancer tissues using SV2C mouse mAb with DAB staining.


Immunohistochemical analysis
설명: Figure 7:Immunohistochemical analysis of paraffin-embedded rectal cancer tissues using SV2C mouse mAb with DAB staining.

Figure 7:Immunohistochemical analysis of paraffin-embedded rectal cancer tissues using SV2C mouse mAb with DAB staining.



For Research Use Only. Not for use in diagnostic procedures.
