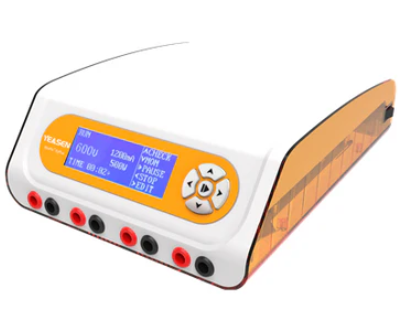

EpPlus Electrophoresis Power Supply
제품 번호
80311ES
제품 설명
Electrophoresis Power Supply is an instrument that helps the electrophoresis cell to realize the normal operation, it mainly consists of power supply, electrophoresis tank, testing unit etc.
EpPlus adopts the technology of microcomputer and switch, which is more advantageous than the traditional electrophoresis power supply. The main features are time-fixed output and non-time fixed output, stable voltage output, short circuit protection, load-oriented voltage output.
Constant voltage output, constant current out, constant power output
Time-set function, automatic switch between constant voltage and constant current in case of exceeding set value
Automatic non-load detecting, automatic protection of short circuit, automatic recording
192*64 LCD extra-big screen
Skid-resistance leg of box
It is suitable for the diving-style gel electrophoresis and mini vertical gel electrophoresis.
Parameter | Specification |
Timer Range | 0 - 99 h 59 min, 1 min step adjustment |
Constant Voltage Range | 10 - 600 V, 1 V step adjustment |
Constant Current Range | 5 - 1200 mA, 1 mA step adjustment |
Constant Power Range | 5 - 500 W, 1 W step adjustment |
Operating Environment | Temperature: 0 - 40°C; Humidity: 0 - 90% RH |
Dimensions | 280 (L) × 195 (W) × 85 (H) mm |
Weight | 3 kg |
Components No. | Name | 80311ES05 |
80311 | EpPlus Basic Electrophoresis Power Supply | 1 Unit |
Yeasen-EpBasic Electrophoresis power supply displays the voltage, current, power simultaneously for the real-time checking. The following indicator appears in case of any default:
“NO LOAD” indicates no connecting the load.
“SHORT ”indicates short circuit.
1)Constant voltage output
A.When the icon of electrophoresis power supply appears on the main screen, press the key ▶to move the cursor to constant value V, at this time, press the key ▲▼ to switch the power supply constant value.
B.While the constant value V appears on the screen ,continue to press the key ▶, move the cursor to the specific value of voltage in the middle part of screen, at this time, press the key ▲▼ to adjust the specific value of constant voltage.
C.Continue to press the key ▶to move the cursor to the position showing the time 00:00, at this time, press the key ▲▼to set the time.
2) Output of constant current and constant power
3) Operation ends
The power supply to stop output when the operation is finished, then the it is buzzing, press the ▲ key for silent, press OK key to continue operation according to previous set value.
4)Output the record
Press the key ▼ on the screen to enter the page of record, press the key ▲▼ to scroll the record. Press the key of OK to operate according to the value set on the current screen.
(1) The warranty is 2 years since the date of sales.
(2) The warranty excludes the following situations otherwise it is charged.
a. No presentation of warranty card and invoice.
b. The invoice is revised.
c. Improper operation or accident factors.
d. The damage is caused by the user’s repair.
e. Out of the warranty, the instrument is still in usage after repair.
