PET4 Vertical Electrophoresis Tank（1.0mm）
제품 번호
80211ES
제품 설명
ES-PET4 Vertical Electrophoresis Cell is used to run pre-casting gel and hand-casting gel, at most 4 pieces of gels are available simultaneously. The Electrophoresis Chamber is compatible with 1-D and 2-D electrophoresis application. The gel-casting frame and spacer glass plate make the activity of hand-casting gel simple and avoid the leakage.
High Capacity: Runs 4 gels simultaneously for efficient processing
Precise Separation: Vertical design ensures uniform electric field for clear band resolution
Wide Compatibility – Compatible with standard gel sizes
User-Friendly – Leak-proof design with easy assembly/disassembly
Polyacrylamide gel electrophoresis (PAGE or SDS-PAGE)
Two-dimensional gel electrophoresis
Screening for new samples
Evaluate sample preparation conditions
Part No. | Product Name | Qty | Unit | Description |
80801ES05 | Comb | 5 | pcs | 1.0 mm, 10 teeth |
80802ES05 | Comb | 5 | pcs | 1.0 mm, 15 teeth |
80808ES05 | Spacer Glass Plate | 5 | pcs | 1.0 mm, 100×83 mm |
80810ES05 | Short Glass Plate | 10 | pcs | 100×73 mm |
80811ES05 | Gel Casting Base | 4 | pcs | For gel casting |
80812ES05 | Gel Casting Frame | 4 | pcs | For gel pouring |
80815ES20 | Gel Casting Frame Hinge | 8 | pcs | Mounted on the gel casting frame |
80814ES05 | Gel Casting Gasket | 5 | strips | Seals the glass, placed under the gel casting base |
80816ES05 | U-shaped Seal Strip | 4 | strips | Seals the gel chamber, mounted on both sides of the core |
80817ES05 | U-shaped Seal Strip (Precast Gel) | 4 | strips | Seals the gel chamber, specifically for precast gels |
80818ES05 | Electrophoresis Core Side Clip | 4 | pcs | Mounted on both sides of the core to secure |
80819ES05 | Electrode Head Core | 1 | set | Direct power connection |
80820ES05 | Mushroom Head Core | 1 | set | Indirect power connection |
80821ES05 | Buffer Barrier | 1 | pcs | Used when running 1 gel |
80822ES05 | Gel Spatula | 5 | pcs | For prying open glass plates |
80823ES05 | Sample Loading Rack | 1 | pcs | Facilitates sample loading |
80824ES05 | Upper Cover (with Cable) | 1 | set | Top cover with power cable |
80825ES05 | Lower Cover | 1 | set | Base tank |
80827ES05 | Glass Plate Holder | 1 | pcs | Holds up to 14 glass plates |
80828ES05 | Centrifuge Tube Rack | 1 | pcs | Holds 91 centrifuge tubes of different sizes |
| Quality Certificate | 1 | pcs | Inspection passed |
| User Manual | 1 | copy | Product instructions |
| Packing List | 1 | copy | List of included components |
Components No. | Name | 80211ES05 |
80211 | PET4 Vertical Electrophoresis Tank（1.0mm） | 1 Unit |

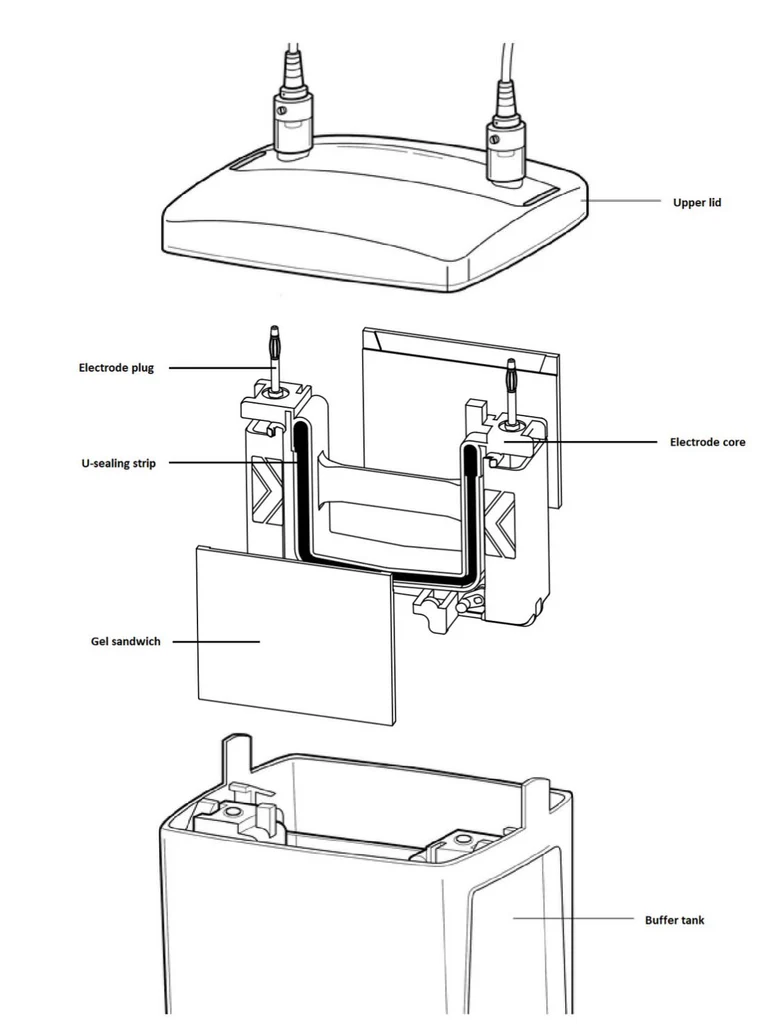

Figure 1: ES-PET4 electrophoresis installation
(1) The warranty is 2 years since the date of sales.
(2) The warranty excludes the following situations otherwise it is charged.
a. No presentation of warranty card and invoice.
b. The invoice is revised.
c. Improper operation or accident factors.
d. The damage is caused by the user’s repair.
e. Out of the warranty, the instrument is still in usage after repair.
