제품 설명
PET 2 Vertical Electrophoresis Tank（1.0mm）
제품 번호
80210ES
제품 설명
ES-PET2 Vertical Electrophoresis Cell is used to run pre-casting gel and hand-casting gel, at most 2 pieces of gels are available simultaneously. The Electrophoresis Chamber is compatible with 1-D and 2-D electrophoresis application. The gel-casting frame and spacer glass plate make the activity of hand-casting gel simple and avoid the leakage.
High Compatibility: Supports precast gels and hand-cast gels for 1-D SDS-PAGE and 2-D electrophoresis;Compatible with 1.0 mm glass plates.
Efficient Operation: Runs 2 gels simultaneously, improving experimental throughput;Recommended 200 V constant voltage, completing SDS-PAGE in ~35 minutes.
Safety Features: Automatic power-off when the lid is opened (safety protection).
Reliable Warranty: 2-year warranty (excludes consumables like glass plates and rubber gaskets).
Polyacrylamide gel electrophoresis (PAGE or SDS-PAGE)
Two-dimensional gel electrophoresis
Screening for new samples
Evaluate sample preparation conditions
Part No. | Product Name | Qty | Unit | Description |
80801ES05 | Comb | 3 | pcs | 1.0 mm, 10 teeth |
80802ES05 | Comb | 3 | pcs | 1.0 mm, 15 teeth |
80808ES05 | Spacer Glass Plate | 3 | pcs | 1.0 mm, 100×83 mm |
80810ES05 | Short Glass Plate | 5 | pcs | 100×73 mm |
80811ES05 | Gel Casting Base | 2 | pcs | For gel casting |
80812ES05 | Gel Casting Frame | 2 | pcs | For gel pouring |
80815ES20 | Gel Casting Frame Hinge | 4 | pcs | Mounted on the gel casting frame |
80814ES05 | Gel Casting Gasket | 3 | strips | Seals the glass, placed under the gel casting base |
80816ES05 | U-shaped Seal Strip | 2 | strips | Seals the gel chamber, mounted on both sides of the core |
80817ES05 | U-shaped Seal Strip (Precast Gel) | 2 | strips | Seals the gel chamber, specifically for precast gels |
80818ES05 | Electrophoresis Core Side Clip | 2 | pcs | Mounted on both sides of the core to secure |
80819ES05 | Electrode Head Core | 1 | set | Direct power connection |
80820ES05 | Mushroom Head Core | 1 | set | Indirect power connection |
80821ES05 | Buffer Barrier | 1 | pcs | Used when running 1 gel |
80822ES05 | Gel Spatula | 3 | pcs | For prying open glass plates |
80823ES05 | Sample Loading Rack | 1 | pcs | Facilitates sample loading |
80824ES05 | Upper Cover (with Cable) | 1 | set | Top cover with power cable |
80825ES05 | Lower Cover | 1 | set | Base tank |
80827ES05 | Glass Plate Holder | 1 | pcs | Holds up to 14 glass plates |
80828ES05 | Centrifuge Tube Rack | 1 | pcs | Holds 91 centrifuge tubes of different sizes |
| Quality Certificate | 1 | pcs | Inspection passed |
| User Manual | 1 | copy | Product instructions |
| Packing List | 1 | copy | List of included components |
Components No. | Name | 80210ES05 |
80210 | PET 2 Vertical Electrophoresis Tank（1.0mm） | 1 Unit |
Transport at ambient temperature, store at room temperature.

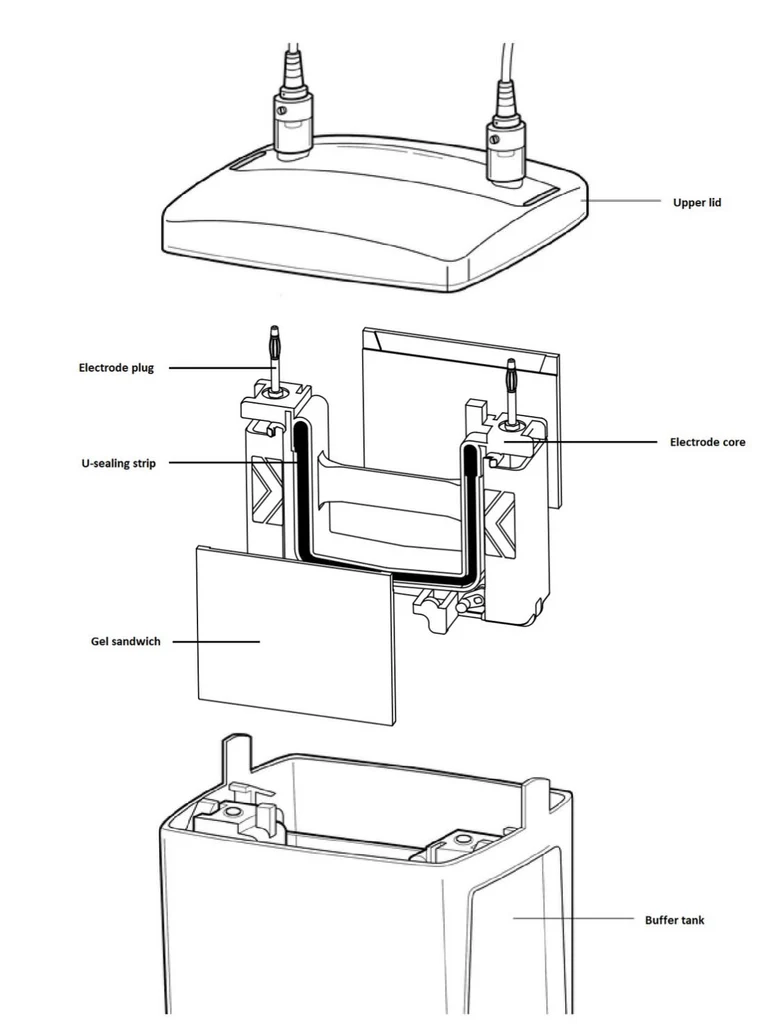

Figure 1: ES-PET2 electrophoresis installation
(1) The warranty is 2 years since the date of sales.
(2) The warranty excludes the following situations otherwise it is charged.
a. No presentation of warranty card and invoice.
b. The invoice is revised.
c. Improper operation or accident factors.
d. The damage is caused by the user’s repair.
e. Out of the warranty, the instrument is still in usage after repair.
